CH-600/8''/85-215kHz/5.2/400 Search Light Sonar
CH-600/8''/85-215kHz/5.2/400 Search Light Sonar
Furuno
SKU:1052637965

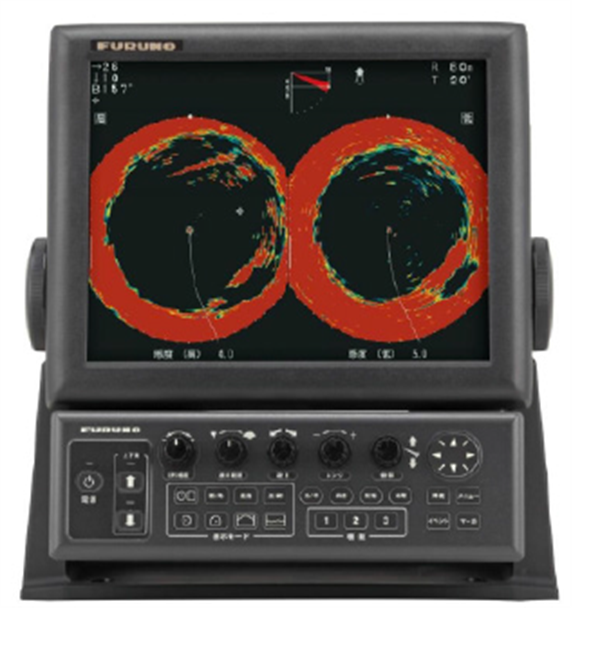

12.1" Color LCD Search Light Sonar with freq. 85-215 kHz (for 8" (dia. 190 mm) tank with 400 mm Stroke).
- Description
12.1" Color LCD Search Light Sonar with freq. 85-215 kHz (for 8" (dia. 190 mm) tank with 400 mm Stroke).
Toode saadaval
Olek: On Order
Järeletulemise saadavust ei saanud laadida
Pange tähele: kui toote hinda ei ole näidatud, saate saadavuse ja hindade kohta teabe saamiseks taotleda hinnapakkumist. Toote hind kuvatakse ostukorvis ja kassas 0,00 €. Hinnapakkumine ei ole siduv.
Jaga
12.1" Color LCD Search Light Sonar with freq. 85-215 kHz (for 8" (dia. 190 mm) tank with 400 mm Stroke). Long range detection with "Auto Filter" securing less noise on the screen (SOG input required!), Fast training speed with step angles 15/18/21 and 24 degree steps, Sharp and Clear echo image on a XGA (1024X768) pixel LCD. BUILT-IN STABILIZER. Semi-transparent menu overlay. Supplied complete with: Raise/lower drive unit (CH-5041-2-85/215), Transceiver Unit (CH-503-A-E), Hull Unit Assembly Parts (CH-5082-N), Control/Display Unit (CH-602/MU121C-E), Complete Sounddome Assy (CH-5048-85/215-52), Cable assy (FRU-CCCAF18-05M-B) [5 M control/power cable between Transceiver Unit and Display], Cable assy (FRU-HDMI-5M-AS) [5 M between Transceiver Unit and Display] and Display Bracket assy w/knobs; 24 V DC. OBS!!! MAIN SHAFT AND TANK MUST BE ORDERED/PURCHASED SEPERATELY!!!
Use main shaft SHJ-0006 [2.2 m] or main shaft 06-0007-1572 [3.8 m]; Use 8” (dia. 190 mm) Steel tank SHJ-0001-2*1.8M*ROHS [1.8 m] or 8” steel tank 06-007-1571-2 [3.5 m]; Cable between Hull unit and transceiver unit use FRU-WH-A-XX.
