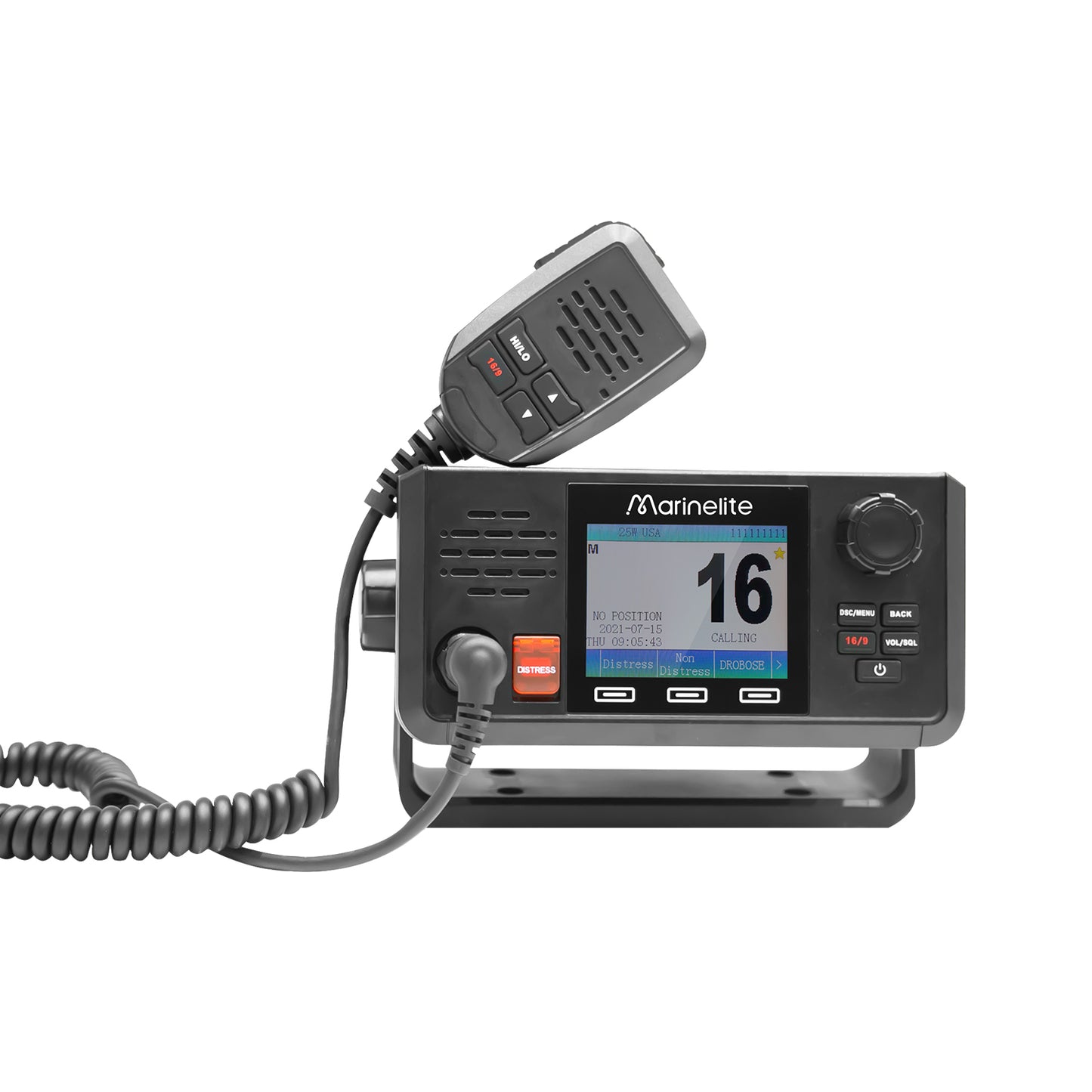

VHF9000 Class A VHF transceiver
VHF9000 Class A VHF transceiver
Marinelite
SKU:VHF9000A
The marine Class A VHF has a good intercom communication effect, built-in DSC function, has good waterproof performance, and the waterproof level reaches IP56.
- Description
The marine Class A VHF has a good intercom communication effect, built-in DSC function, has good waterproof performance, and the waterproof level reaches IP56.
Toode saadaval
Olek: On Order
Järeletulemise saadavust ei saanud laadida
Pange tähele: kui toote hinda ei ole näidatud, saate saadavuse ja hindade kohta teabe saamiseks taotleda hinnapakkumist. Toote hind kuvatakse ostukorvis ja kassas 0,00 €. Hinnapakkumine ei ole siduv.
Jaga
- Dual-watch and Tri-watch Functions;
- Priority channel scan;
- Built-in DSC function, CH70 channel dedicated receiving channel;
- Built-in weather channel to receive weather alerts;
- High and low power optional function;
- Data interface to BAM System/INS
- Knob & touch screen operation
- CERTIFICATED of Marine Product by China Classification Society (CCS).
Frequency Range: TX：156.000～162.000MHz RX：156.000～163.450MHz
Number Of Channel: Standard UIC channels
Channel Spacing: 25KHz
Mode: 16K0G3E (FM)；16K0G2B(DSC)
Antenna impedance: 50Ω
Frequency stability: ±10PPM（－20℃～+60℃）
Working temperature: －20℃～+60℃
Power Supply: 12V-10%/+30%
Current consumption: ≤5.5A（TX）
Transmitter
Output power: 25W/1W
Maximum Frequency: ±5kHz
Deviation: ≤-36dBm
Spurious Radiation
ACPR: ≥70dB
Residual FM: ≤-40dB
Audio distortion degree: ≤10%
Audio Response: +1～-3dB
Current: ≤5.5A(High power) ≤1.5A(Low power)
Input Impedance: 2kΩ
Receiver
Main channel receive sensitivity: ≤-120dBm(12dB SINAD)
DSC(CH70) Receive sensitivity: ≤-117dBm (1﹪BER)
Squelch Sensitivity: ≤0.22µV
Audio power: ≥4.5W（10% distortion, 4Ω）
SNR: ≥40dB
Audio distortion: ≤10%
Intermodulation Rejection: ≥68dB
Adjacent channel selectivity: ≥70dB
Rejection Spurious Response: ≥70dB
GPS Data Format: NMEA0183-2.0
