CH-500BB/8''/150kHz/5.2/250 Search Light Sonar
CH-500BB/8''/150kHz/5.2/250 Search Light Sonar
Furuno
SKU:1052637548
Black Box Search Light Sonar with freq. 150 kHz (for 8" (dia. 190 mm) tank with 250 mm
- Description
Black Box Search Light Sonar with freq. 150 kHz (for 8" (dia. 190 mm) tank with 250 mm
Product available
Status: On Order
Couldn't load pickup availability
Please note: Where product price is not shown, you can request for quote to receive information on availability and pricing. Product price will appear €0,00 in cart and checkout. A quote is non-binding.
Share

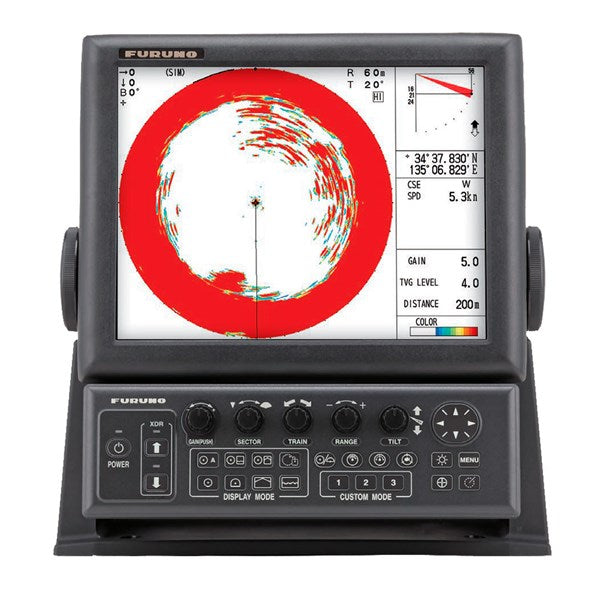

Black Box Search Light Sonar with freq. 150 kHz (for 8" (dia. 190 mm) tank with 250 mm Stroke). Long range detection with "Auto Filter" securing less noise on the screen (SOG input required!), Fast training speed with step angles 15/18/21 and 24 degree steps, Sharp and Clear echo image. BUILT-IN STABILIZER. Semi-transparent menu overlay. Supplied complete with: Raise/lower drive unit (CH-5051-2-150), Transceiver Unit (CH-503), Hull Unit Assembly Parts (CH-5082-N), Control unit (CH-502), Complete Sounddome Assy (CH-5048-150-52), Cable between transceiver unit and control unit MJ-A10SPF0022-050 [5 m], 24 V DC. OBS!!! MAIN SHAFT, TANK AND CABELS MUST BE ORDERED/PURCHASED SEPERATELY!!!
Use main shaft SHJ-0006 [2.2 m] or main shaft 06-0007-1572 [3.8 m]; Use 8” (dia. 190 mm) Steel tank SHJ-0001-2*1.8M*ROHS [1.8 m] or 8” steel tank 06-007-1571-2 [3.5 m]; Cable between Hull unit and transceiver unit use FRU-WH-A-XX.
