Gyro Compass Standard 22 NX
Gyro Compass Standard 22 NX
Anschütz
SKU:110-815
Regular price
€14.100,00
Regular price
Sale price
€14.100,00
Unit price
/
per

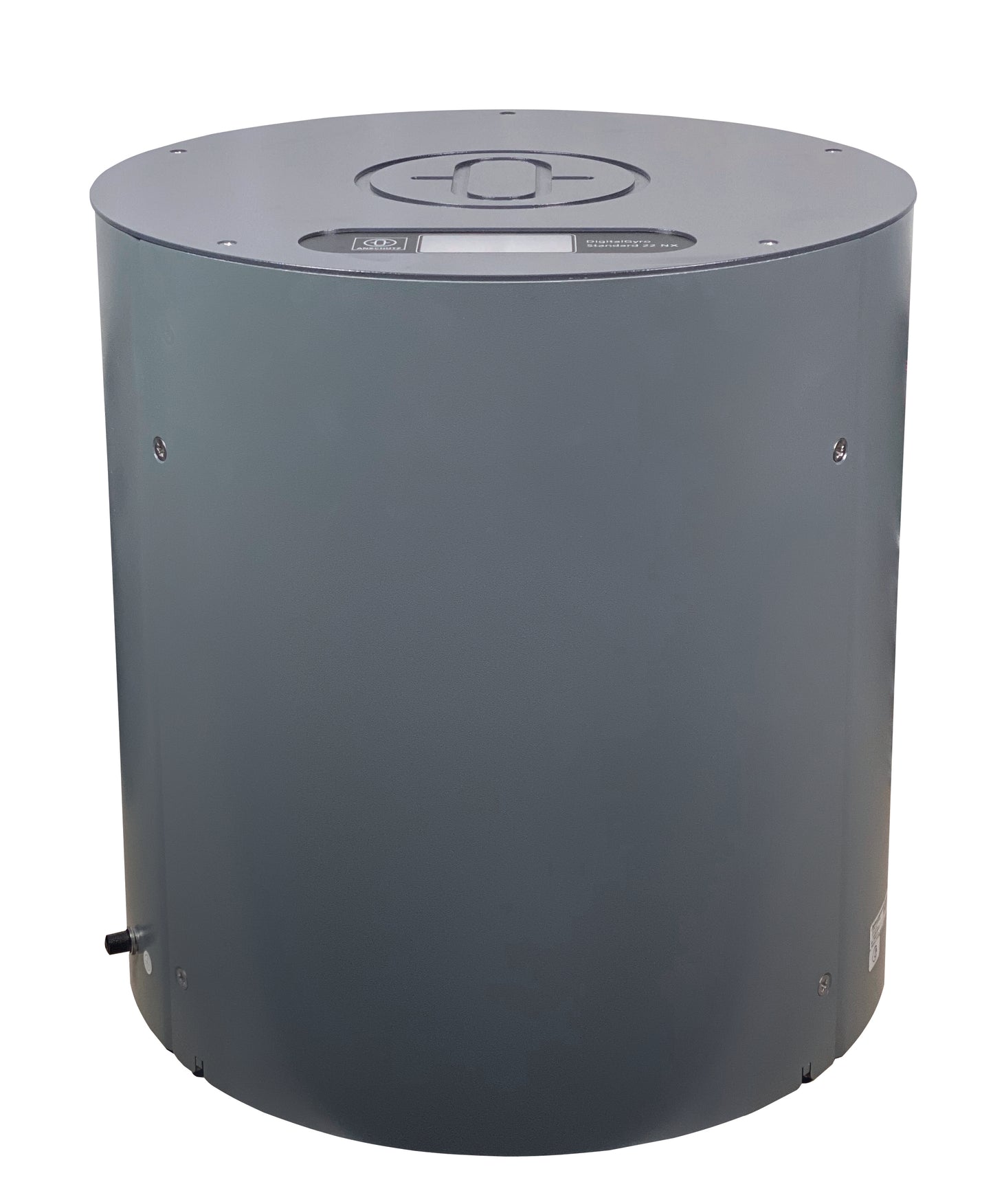

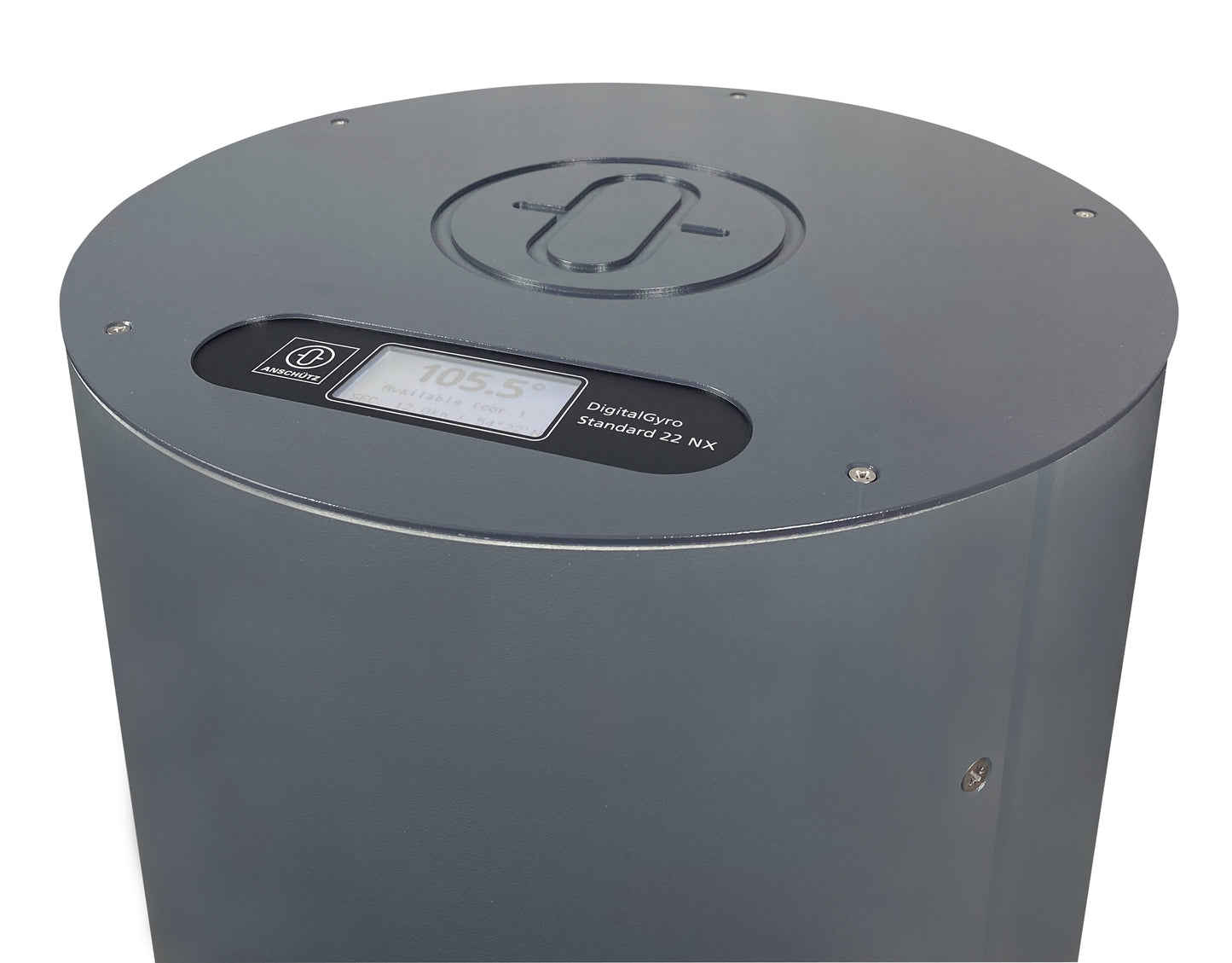

The Standard 22 NX is a gyro compass, a nonmagnetic compass that uses a motor-driven gyroscope to indicate true north. Anschütz designed the Standard 22 NX for high accuracy, reliability and operational safety even under harshest environmental conditions for all kind of ships. With interfaces for serial data, Ethernet and Bridge Alert Management it offers easy installation and integration.
- Description
The Standard 22 NX is a gyro compass, a nonmagnetic compass that uses a motor-driven gyroscope to indicate true north. Anschütz designed the Standard 22 NX for high accuracy, reliability and operational safety even under harshest environmental conditions for all kind of ships. With interfaces for serial data, Ethernet and Bridge Alert Management it offers easy installation and integration.
Product available
Status: On Order
Couldn't load pickup availability
Please note: Where product price is not shown, you can request for quote to receive information on availability and pricing. Product price will appear €0,00 in cart and checkout. A quote is non-binding.
Share
Key benefits is offered by Standard 22 NX thanks to its use of unique sensor technology and a robust design that reduces environmental influence (i.e. shocks, vibrations). The high accuracy and reliability of heading information has been proven in over 15 years and more than 20,000 installations.

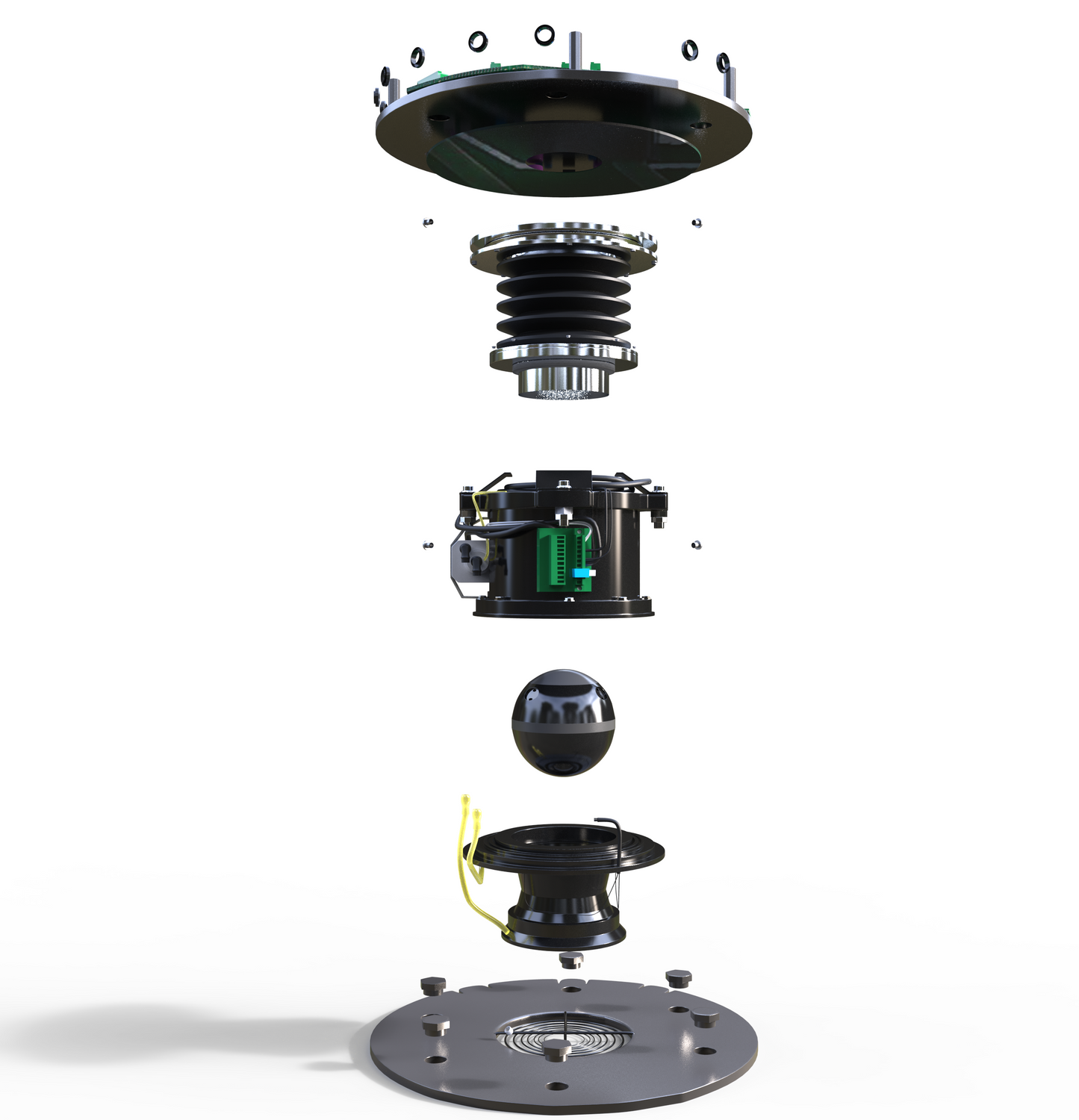

- Inductive and optical data transmission, no slip rings that are subject to wear
- Unique resistant design reduces environmental influence (i.e. shocks, vibrations)
- Reliability and best accuracy of heading information under any environmental condition, proven many times even in high latitudes
- 24 months warranty for gyrospheres (see GToB)
Highest operational safety under harshest environmental conditions.
- High accuracy of 0.4° sec lat rms (in average)
- Integration of up to four sensors, including third-party compasses (up to three gyro compasses, or two gyros and a GNSS THD, and a magnetic compass)
- CAN bus based real time network with up to 400m cable length
- Heading monitor, with manual or automatic switch over of gyro compasses
- Automatic correction of magnetic heading by deviation and variation (with GNSS receiver)
- Quick settling mode
