ECDIS NX Compact Dual
ECDIS NX Compact Dual
Anschütz
SKU:770-011.NG002
ECDIS NX Compact has been especially designed for the use in retrofits, supporting customers with unsurpassed user-friendlyness and easy handling. Future-proof hardware, a growing scope of modular features and ongoing compliance with new ECDIS standards make ECDIS NX Compact a secure investment.
In the ECDIS NX Compact Dual configuration the ECDIS NX supports Track Control acc. to IEC 62065 V. 2.0 and is compliant for paperless navigation.
- Description
ECDIS NX Compact has been especially designed for the use in retrofits, supporting customers with unsurpassed user-friendlyness and easy handling. Future-proof hardware, a growing scope of modular features and ongoing compliance with new ECDIS standards make ECDIS NX Compact a secure investment.
In the ECDIS NX Compact Dual configuration the ECDIS NX supports Track Control acc. to IEC 62065 V. 2.0 and is compliant for paperless navigation.
Product available
Status: On Order
Couldn't load pickup availability
Please note: Where product price is not shown, you can request for quote to receive information on availability and pricing. Product price will appear €0,00 in cart and checkout. A quote is non-binding.
Share

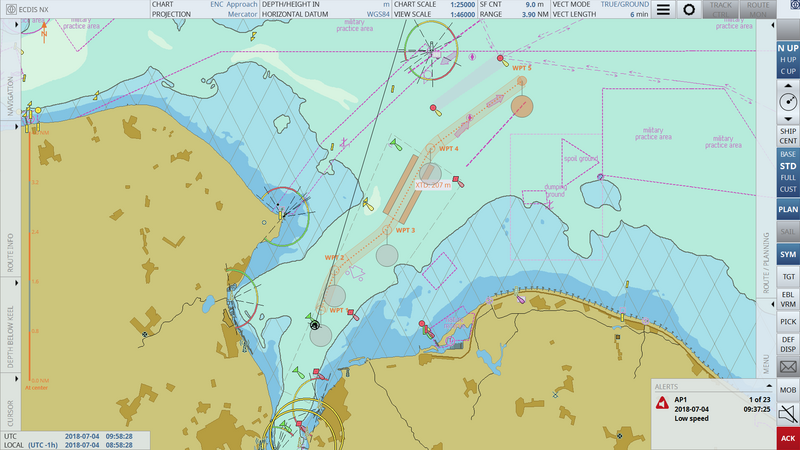

An Electronic Chart Display and Information System (ECDIS) displays the information from Electronic Navigational Charts (ENC) and integrates multiple sensor information into a common display for maximum level of awareness.

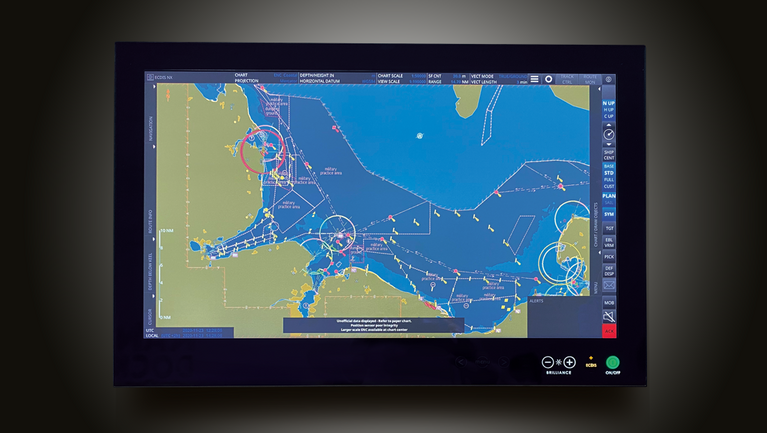

The ECDIS NX Compact is a pre-configured system of a 24" multi-touch panel-pc and the ECDIS NX application. It offers „plug and play“ installation and supports customers with unsurpassed user-friendlyness and easy handling at a competitive price. Optimized for retrofits, the ECDIS NX Compact is equipped with interfaces for Ethernet and IEC 61161-1 (NMEA).
- 24“ Panel PC with multi-touch (i7 Quad Core processor, 240 GB SSD, 8 GB RAM) with Ethernet and 8 x IEC 61162-1 serial phoenix connectors (NMEA)
- USB thumb drive with SW installer wizard for IEC 61174 Ed. 4 type approved ECDIS NX software and ECDIS NX license key as well as state-of-the-art Windows 10 IoT Enterprise operating system
- Ergonomical trackball with scroll-wheel for desktop use
- ECDIS NX Operator Manual and ECDIS NX Compact System Manual available via download from our website or on request
