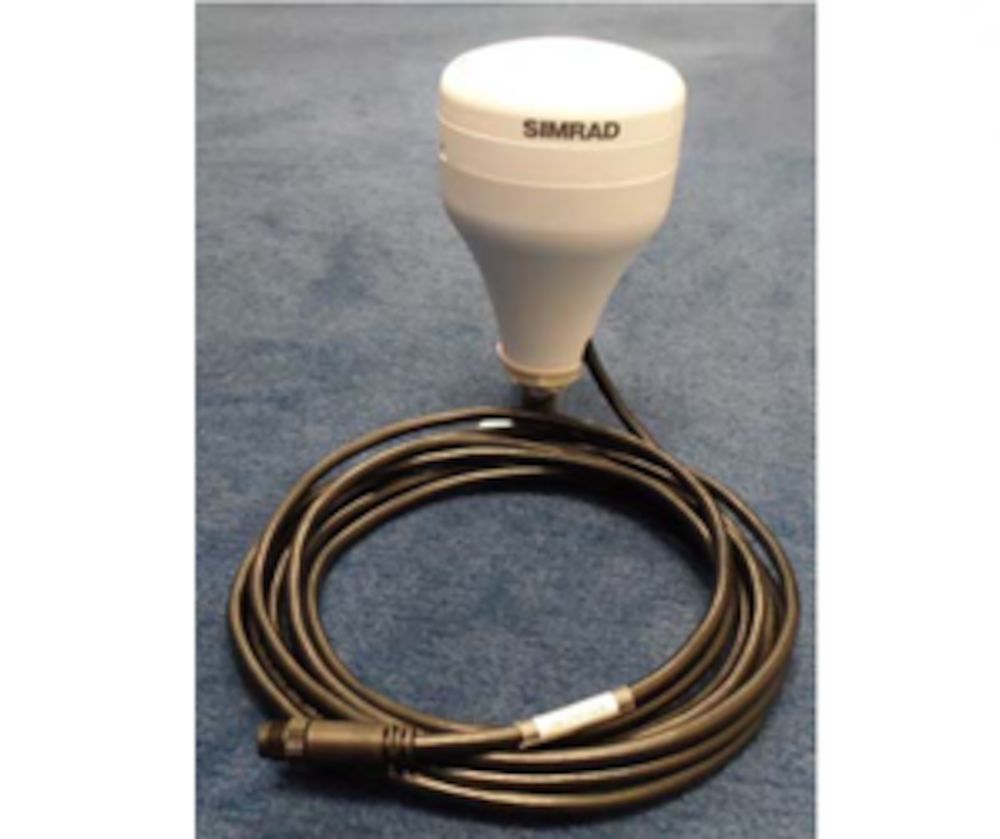

Simrad GS70 N2K GPS Antenna
Simrad GS70 N2K GPS Antenna
Simrad
SKU:000-11137-001
GS70 GPS Smart Antenna is an IMO compliant NMEA2000 GPS antenna which can be used with Simrad’s IMO compliant P3007 GPS Display for IMO Applications, or P2005 GPS Display for non-IMO applications where high accuracy in a small formfactor is desired.
- Description
GS70 GPS Smart Antenna is an IMO compliant NMEA2000 GPS antenna which can be used with Simrad’s IMO compliant P3007 GPS Display for IMO Applications, or P2005 GPS Display for non-IMO applications where high accuracy in a small formfactor is desired.
Product available
Status: On order
Couldn't load pickup availability
Please note: Where product price is not shown, you can request for quote to receive information on availability and pricing. Product price will appear €0,00 in cart and checkout. A quote is non-binding.
Share
The GS70 GPS antenna is an IMO compliant NMEA 2000 Smart Antenna that integrates with the GN70. The GN70/GS70 global navigation system is a cost effective navigation system for today's professional market.
The GS70 can receive DGPS corrections from SBAS satellites such as WAAS. The smart antenna has 32 channels and can output position at 1Hz, 5Hz, or 10Hz. The antenna has GPS accuracy (2DRMS) of 5m, and DGPS (SBAS) accuracy of 2m. The antenna is incredibly easy to install as it has a standard NMEA 2000 interface
-Easy to install with NMEA 2000 interface
-Receives DGPS corrections from SBAS (WAAS, EGNOS, MSAS) satellites
-Receives RTCM corrections from NMEA 2000 Bus with MX610 junction box
-Designed with 32 channels GNSS receiver
-Position update rate at 1, 5, or 10 Hz
-GPS accuracy (2DRMS) of 5m and DGPS accuracy (SBAS) of 2m.
- Easy to install with NMEA 2000 interface
- Receives DGPS corrections from SBAS (WAAS, EGNOS, MSAS) satellites
- Receives RTCM corrections from NMEA 2000 Bus with MX610 junction box
- Designed with 32 channel GNSS receiver
- Position update rate at 1, 5, or 10 Hz
- GPS accuracy (2D RMS) of 5m and DGPS accuracy (SBAS) of 2m
