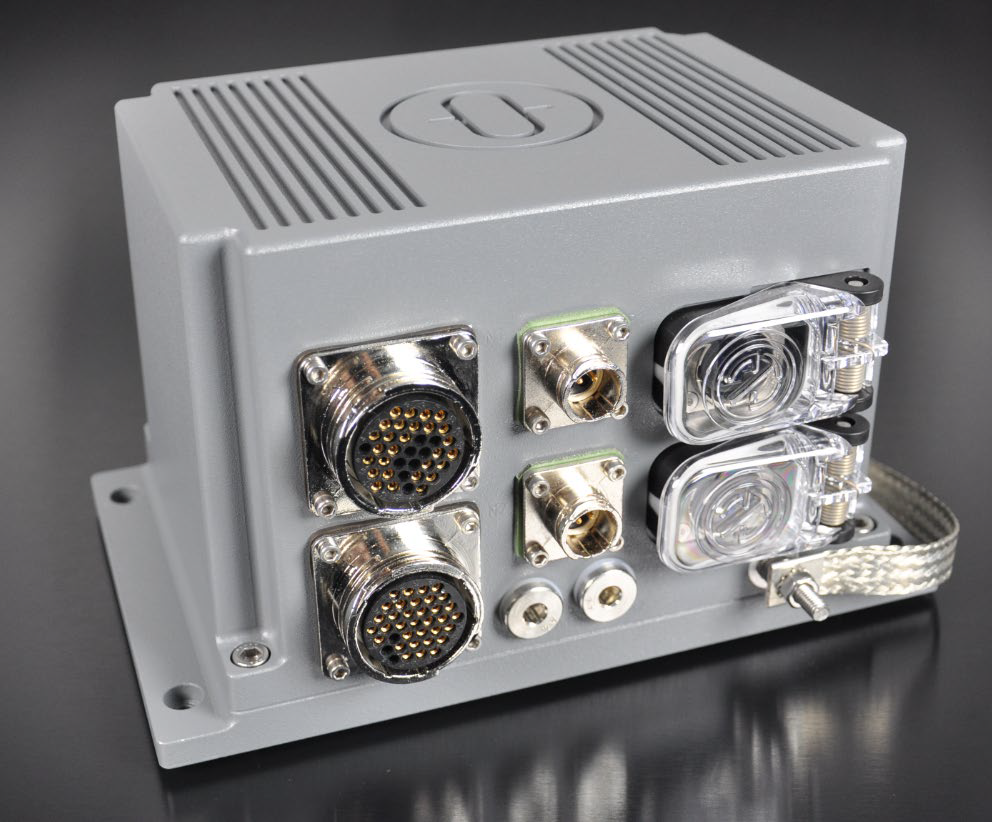

Gyro Compass Standard 30 MF
Gyro Compass Standard 30 MF
Anschütz
SKU:2231
Regular price
€36.775,00
Regular price
Sale price
€36.775,00
Unit price
/
per
Standard 30 MF is Anschütz’ 2nd generation maintenance-free gyro compass system based on strap down technology. It uses Hemispherical Resonator Gyros (HRG) to measure angular rates and accelerometers. Based on these measurements the system computes heading, rate-of-turn, but also roll and pitch.
- Description
Standard 30 MF is Anschütz’ 2nd generation maintenance-free gyro compass system based on strap down technology. It uses Hemispherical Resonator Gyros (HRG) to measure angular rates and accelerometers. Based on these measurements the system computes heading, rate-of-turn, but also roll and pitch.
Product available
Status: On Order
Couldn't load pickup availability
Please note: Where product price is not shown, you can request for quote to receive information on availability and pricing. Product price will appear €0,00 in cart and checkout. A quote is non-binding.
Share
Strap-down technology is already well known and proven for many years – mainly in combination with Fiber Optical Gyros (FOGs) or Ring Laser Gyros (RLGs). HRGs come with a significant longer Mean Time Between Failure (MTBF) value of 100,000 hours compared to other maintenance free sensor technologies.
Standard 30 MF comes with 5 years warranty.
- Automatic speed error correction
- Settling time: 1 hour
- Type approved as gyro compass, gyro compass for high-speed craft (HSC) and rate-of-turn indicator
