RF45X
RF45X
Simrad
SKU:22011415
- Description
Product available
Status: On Order
Couldn't load pickup availability
Please note: Where product price is not shown, you can request for quote to receive information on availability and pricing. Product price will appear €0,00 in cart and checkout. A quote is non-binding.
Share

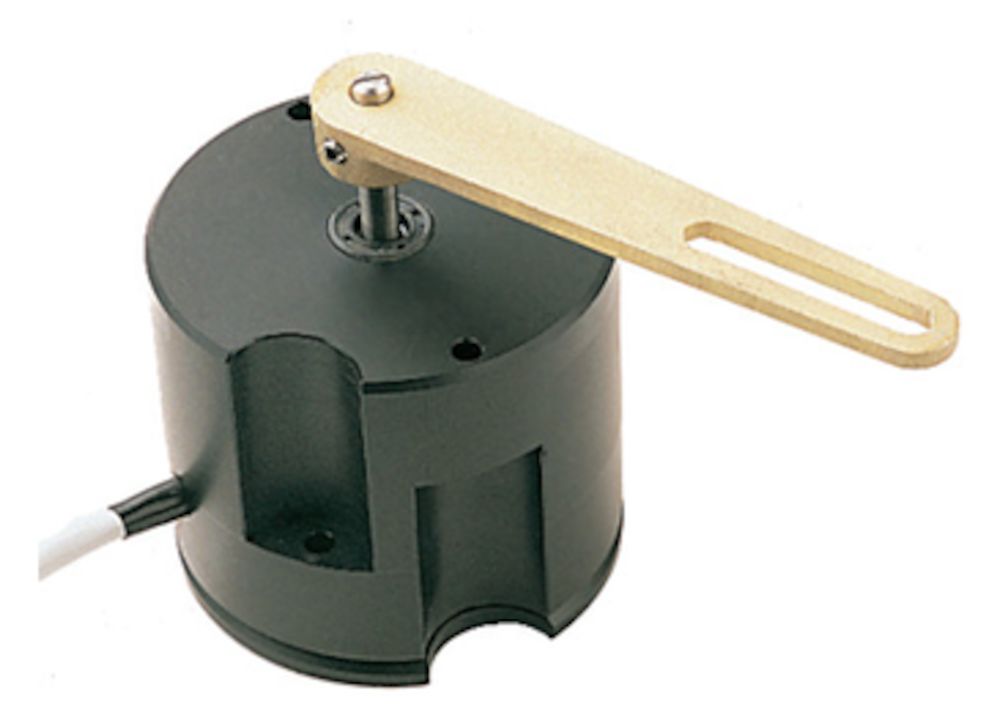

The RF45X is a medium duty rudder feedback unit. Mechanically it is identical to its predecessor, RF45, therefore it is a repairable rather than a potted throw away item. Electrically it outputs a frequency (pulse width modulated) signal that matches with the J3XX input (AP35/AP50) but it can also output a frequency signal (selectable via internal jumpers) that matches with AP45 and AP9 Mk3. The RF45X can also operate on 24V DC a useful feature when connected in a stand alone rudder angle indicator system. The unit is mounted close to the rudder stock and is mechanically connected to the rudder by the RF45 transmission link.
Medium duty feedback unit with transmission linkage
Mechanically identical to Simrad RF45
Variable frequency output for Simrad autopilots
Variable current output for rudder angle indicators
Requires 12-24VDC supply voltage
